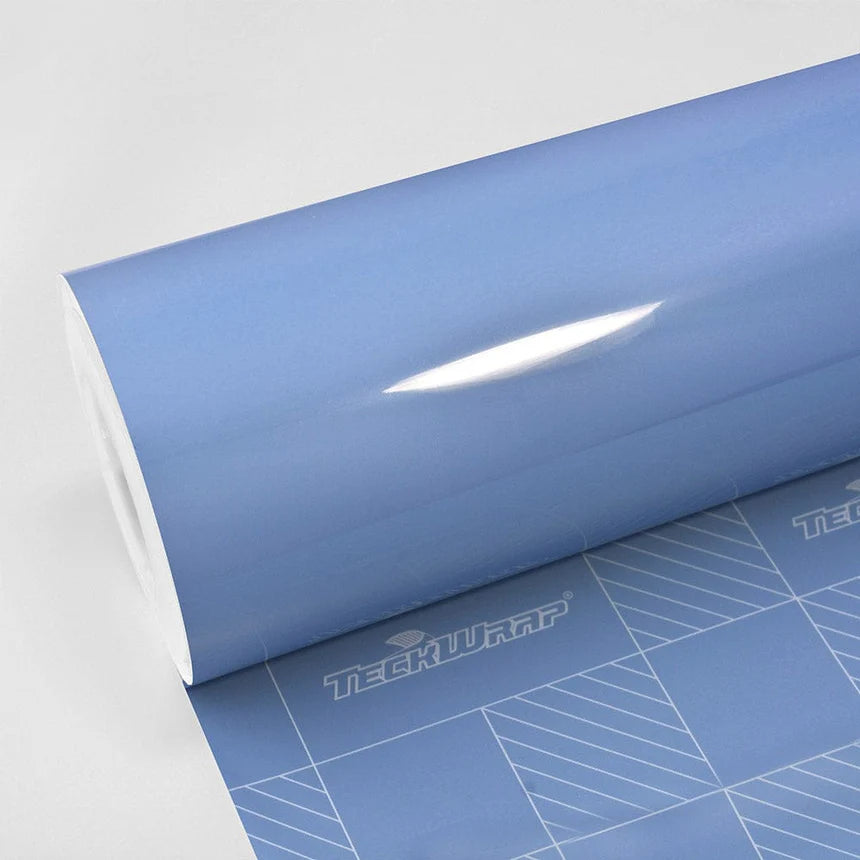

China Blue

Specifications

The thickness of the film(um): 110
The thickness of the release liner(um): 142
Type of film: High-grade polymeric calendered film with air release

Adhesive: Henkel solvent-based acrylic adhesive, ultra-weather-resistant, viscosity 1000~3000cps, thickness 12 μm dry
Release liner: Plastic liner
Storing period: 2 years if stored in +10°С to +20°С, relative humidity 50%, in original package, away from direct sunlight, in a clean and dry place. Important: the top protective layer should be removed before installation, and the film should be stored without the protective layer to prevent "tunneling."
Durability/Warranty: Datasheet (Click the link)

Release force (N/25mm): Standart: 0.10-0.30, Result:0,18 (23℃,54%H)

Initial Tack(g/25mm): Testing method: GB31125-2014: Standart 800-1500, Result: 1015 (23℃,54%H)

180° Peel strength (N/25mm): Testing Method: GB/T2792-1998: Standart ≥4.9, Result: 8,1 (23℃,54%H)

Adhesion strength: Testing method: GB/T4851-1998, Standart ≥60, Result 70 (No shifting)

Aging (65℃, seven days): Standart - High-temperature release without adhesive residue, result: no adhesive residue

Aging (-65℃, ten days): Standart - Low-temperature release without adhesive residue, result: no adhesive residue
